Abstract base class for FHE-based Arithmetic Logic Units. More...

#include <BaseALU.h>

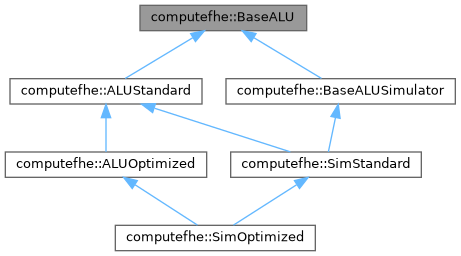

Inheritance diagram for computefhe::BaseALU:

[legend]

Collaboration diagram for computefhe::BaseALU:

[legend]

Public Member Functions
	BaseALU (ComputeFHE *cfhe)
	Construct a new BaseALU object.

virtual	~BaseALU ()
	Destroy the BaseALU object.

virtual BinaryDigit	GetCarry ()
	Returns the current internal carry state.

virtual void	SetCarry (BinaryDigit value)
	Manually sets the internal carry to a specific value.

virtual void	SetCarry ()
	Sets the internal carry to an encrypted 'True' value.

virtual void	ResetCarry ()
	Resets the internal carry to an encrypted 'False' value.

FHE-Level Gates
These methods provide logical abstractions.
virtual BinaryDigit	FHE_False ()

virtual BinaryDigit	FHE_True ()

virtual BinaryDigit	FHE_AND (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	FHE_NAND (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	FHE_OR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	FHE_NOR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	FHE_XOR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	FHE_XNOR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	FHE_NOT (const BinaryDigit &a)

virtual BinaryDigit	FHE_MUX (const BinaryDigit &s, const BinaryDigit &a, const BinaryDigit &b)

Base Logic Gates
Fundamental cryptographic gate implementations.
virtual BinaryDigit	Constant0 ()
	Returns encrypted constant 0 (false).

virtual BinaryDigit	Constant1 ()
	Returns encrypted constant 1 (true).

virtual BinaryDigit	Gate_AND (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	Gate_NAND (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	Gate_OR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	Gate_NOR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	Gate_XOR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	Gate_XNOR (const BinaryDigit &a, const BinaryDigit &b)

virtual BinaryDigit	Gate_NOT (const BinaryDigit &a)

virtual BinaryDigit	Gate_MUX (const BinaryDigit &s, const BinaryDigit &a, const BinaryDigit &b)

Abstract Specialized Gates
Pure virtual methods that must be implemented by optimized or standard ALU logic.
virtual BinaryDigit	Gate_MAJ (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c)=0
	Majority gate: returns true if at least two inputs are true.

virtual BinaryDigit	Gate_XOR3 (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c)=0
	3-input XOR gate.

virtual BinaryDigit	Gate_MulAdd (const BinaryDigit &m, const BinaryDigit &a, const BinaryDigit &b, BinaryDigit *carry_out=nullptr)=0
	Multiplies two digits and adds a third, optionally returning carry out.

virtual BinaryDigit	Gate_DigitSum (const BinaryDigit &e1, const BinaryDigit &e0, const BinaryDigit &s0)=0
	Performs bitwise digit summation logic.

Word-Level Interface
Operations acting on multi-bit FixedPoint objects.
virtual FixedPoint	Mux (const BinaryDigit &s, const FixedPoint &a, const FixedPoint &b)=0
	Multiplexer for FixedPoint values: returns 'a' if 's' is true, else 'b'.

virtual FixedPoint	ToggleMSB (const FixedPoint &a)=0
	Toggles the Most Significant Bit (useful for sign manipulation).

virtual FixedPoint	ShiftLeft (const FixedPoint &a, size_t shift)=0
	Logical shift left.

virtual FixedPoint	ShiftRight (const FixedPoint &a, size_t shift, bool is_arithmetic=false)=0
	Shift right (supports both logical and arithmetic/signed shifts).

virtual void	Swap_if (const BinaryDigit &cond, BinaryDigit &a, BinaryDigit &b)=0
	Conditional swap of two bits if 'cond' is true.

virtual void	Swap_if (const BinaryDigit &cond, FixedPoint &a, FixedPoint &b)=0
	Conditional swap of two FixedPoint values if 'cond' is true.

virtual void	HalfAdder (const BinaryDigit &a, const BinaryDigit &b, BinaryDigit &sum, BinaryDigit &carry_out)=0
	1-bit half adder.

virtual void	HalfSubtractor (const BinaryDigit &a, const BinaryDigit &b, BinaryDigit &sum, BinaryDigit &carry_out)=0
	1-bit half subtractor.

virtual void	FullAdder (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c, BinaryDigit &sum, BinaryDigit &carry_out)=0
	1-bit full adder with explicit carry-in.

Ciphertext-Ciphertext Arithmetic
Standard arithmetic between two encrypted FixedPoint values.
virtual FixedPoint	Add (const FixedPoint &a, const FixedPoint &b)=0
	Addition: result = a + b.

virtual FixedPoint	AddC (const FixedPoint &a, const FixedPoint &b)=0
	Addition with Carry: result = a + b + carry.

virtual FixedPoint	AddNC (const FixedPoint &a, const FixedPoint &b)=0
	Addition without updating internal carry.

virtual FixedPoint	AddCNC (const FixedPoint &a, const FixedPoint &b)=0
	Addition with Carry, but without updating internal carry.

virtual FixedPoint	Sub (const FixedPoint &a, const FixedPoint &b)=0
	Subtraction: result = a - b.

virtual FixedPoint	SubC (const FixedPoint &a, const FixedPoint &b)=0
	Subtraction with Borrow (!Carry): result = a - b - !carry.

virtual FixedPoint	SubNC (const FixedPoint &a, const FixedPoint &b)=0
	Subtraction without updating internal carry.

virtual FixedPoint	SubCNC (const FixedPoint &a, const FixedPoint &b)=0
	Subtraction with Carry, but without updating internal carry.

virtual FixedPoint	Neg (const FixedPoint &a)=0
	Arithmetic negation: result = -a.

virtual FixedPoint	Not (const FixedPoint &a)=0
	Bitwise NOT.

Comparisons
Logical comparisons returning encrypted boolean bits.
virtual BinaryDigit	CmpNotEq (const FixedPoint &a, const FixedPoint &b)=0
	Not-Equal.

virtual BinaryDigit	CmpEq (const FixedPoint &a, const FixedPoint &b)=0
	Equal.

virtual BinaryDigit	CmpLTEq_U (const FixedPoint &a, const FixedPoint &b)=0
	Unsigned Less-Than or Equal.

virtual BinaryDigit	CmpGT_U (const FixedPoint &a, const FixedPoint &b)=0
	Unsigned Greater-Than.

virtual BinaryDigit	CmpGTEq_U (const FixedPoint &a, const FixedPoint &b)=0
	Unsigned Greater-Than or Equal.

virtual BinaryDigit	CmpLT_U (const FixedPoint &a, const FixedPoint &b)=0
	Unsigned Less-Than.

virtual BinaryDigit	CmpLTEq (const FixedPoint &a, const FixedPoint &b)=0
	Signed Less-Than or Equal.

virtual BinaryDigit	CmpGT (const FixedPoint &a, const FixedPoint &b)=0
	Signed Greater-Than.

virtual BinaryDigit	CmpGTEq (const FixedPoint &a, const FixedPoint &b)=0
	Signed Greater-Than or Equal.

virtual BinaryDigit	CmpLT (const FixedPoint &a, const FixedPoint &b)=0
	Signed Less-Than.

Multi-Word Arithmetic
Complex arithmetic operations.
virtual FixedPoint	FullMul (const FixedPoint &a, const FixedPoint &b)=0
	Performs full multiplication resulting in potentially larger bit-width.

virtual FixedPoint	Mul (const FixedPoint &a, const FixedPoint &b)=0
	Standard multiplication (truncated to input width).

virtual void	DivU (const FixedPoint &a, const FixedPoint &b, FixedPoint &q, FixedPoint &r)=0
	Unsigned division, calculating quotient (q) and remainder (r).

Ciphertext-Plaintext Arithmetic
Optimized operations where one operand is a known plaintext constant (pb/pa).
virtual FixedPoint	PAdd (const FixedPoint &a, const FixedPoint &pb)=0
	Plaintext addition: result = a + pb.

virtual FixedPoint	PAddC (const FixedPoint &a, const FixedPoint &pb)=0
	Plaintext addition with carry.

virtual FixedPoint	PAddNC (const FixedPoint &a, const FixedPoint &pb)=0
	Plaintext addition without updating internal carry.

virtual FixedPoint	PAddCNC (const FixedPoint &a, const FixedPoint &pb)=0
	Plaintext addition with carry, but no update to internal state.

virtual FixedPoint	PSub (const FixedPoint &pa, const FixedPoint &b)=0
	Plaintext subtraction: result = pa - b.

virtual FixedPoint	PSubC (const FixedPoint &pa, const FixedPoint &b)=0
	Plaintext subtraction with carry.

virtual FixedPoint	PSubNC (const FixedPoint &pa, const FixedPoint &b)=0
	Plaintext subtraction without updating internal carry.

virtual FixedPoint	PSubCNC (const FixedPoint &pa, const FixedPoint &b)=0
	Plaintext subtraction with carry, but no update to internal state.

virtual FixedPoint	CPSub (const FixedPoint &a, const FixedPoint &pb)=0
	Ciphertext-Plaintext subtraction: result = a - pb.

virtual FixedPoint	CPSubC (const FixedPoint &a, const FixedPoint &pb)=0
	Ciphertext-Plaintext subtraction with carry.

virtual FixedPoint	CPSubNC (const FixedPoint &a, const FixedPoint &pb)=0
	Ciphertext-Plaintext subtraction without updating internal carry.

virtual FixedPoint	CPSubCNC (const FixedPoint &a, const FixedPoint &pb)=0
	Ciphertext-Plaintext subtraction with carry, no update.

virtual FixedPoint	PFullMul (const FixedPoint &a, const FixedPoint &pb)=0
	Full multiplication by a plaintext constant.

virtual FixedPoint	PFullMulFast (const FixedPoint &a, const FixedPoint &pb)=0
	Optimized full multiplication by a plaintext constant.

virtual FixedPoint	PBoothsMul (const FixedPoint &a, const FixedPoint &pb)=0
	Multiplication using Booth's algorithm with a plaintext constant.

virtual FixedPoint	PMul (const FixedPoint &a, const FixedPoint &pb)=0
	Standard multiplication by a plaintext constant.

virtual FixedPoint	PMulFast (const FixedPoint &a, const FixedPoint &pb)=0
	Optimized standard multiplication by a plaintext constant.

Protected Attributes
BinaryDigit	carry

ComputeFHE *	cfhe_base

Detailed Description

Abstract base class for FHE-based Arithmetic Logic Units.

This class defines the interface for all logic and arithmetic operations performed on encrypted data (FixedPoint and BinaryDigit). It manages internal state such as carry flags and provides gate-level operations.

Constructor & Destructor Documentation

◆ BaseALU()

computefhe::BaseALU::BaseALU ( ComputeFHE * cfhe )

Construct a new BaseALU object.

Parameters

cfhe	Pointer to the ComputeFHE instance providing the crypto context.

Member Function Documentation

◆ Add()

virtual FixedPoint computefhe::BaseALU::Add	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Addition: result = a + b.

Implemented in computefhe::ALUStandard.

◆ AddC()

virtual FixedPoint computefhe::BaseALU::AddC	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Addition with Carry: result = a + b + carry.

Implemented in computefhe::ALUStandard.

◆ AddCNC()

virtual FixedPoint computefhe::BaseALU::AddCNC	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Addition with Carry, but without updating internal carry.

Implemented in computefhe::ALUStandard.

◆ AddNC()

virtual FixedPoint computefhe::BaseALU::AddNC	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Addition without updating internal carry.

Implemented in computefhe::ALUStandard.

◆ CmpEq()

virtual BinaryDigit computefhe::BaseALU::CmpEq	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Equal.

Implemented in computefhe::ALUStandard.

◆ CmpGT()

virtual BinaryDigit computefhe::BaseALU::CmpGT	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Signed Greater-Than.

Implemented in computefhe::ALUStandard.

◆ CmpGT_U()

virtual BinaryDigit computefhe::BaseALU::CmpGT_U	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Unsigned Greater-Than.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ CmpGTEq()

virtual BinaryDigit computefhe::BaseALU::CmpGTEq	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Signed Greater-Than or Equal.

Implemented in computefhe::ALUStandard.

◆ CmpGTEq_U()

virtual BinaryDigit computefhe::BaseALU::CmpGTEq_U	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Unsigned Greater-Than or Equal.

Implemented in computefhe::ALUStandard.

◆ CmpLT()

virtual BinaryDigit computefhe::BaseALU::CmpLT	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Signed Less-Than.

Implemented in computefhe::ALUStandard.

◆ CmpLT_U()

virtual BinaryDigit computefhe::BaseALU::CmpLT_U	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Unsigned Less-Than.

Implemented in computefhe::ALUStandard.

◆ CmpLTEq()

virtual BinaryDigit computefhe::BaseALU::CmpLTEq	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Signed Less-Than or Equal.

Implemented in computefhe::ALUStandard.

◆ CmpLTEq_U()

virtual BinaryDigit computefhe::BaseALU::CmpLTEq_U	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Unsigned Less-Than or Equal.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ CmpNotEq()

virtual BinaryDigit computefhe::BaseALU::CmpNotEq	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Not-Equal.

Implemented in computefhe::ALUStandard.

◆ CPSub()

virtual FixedPoint computefhe::BaseALU::CPSub	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Ciphertext-Plaintext subtraction: result = a - pb.

Implemented in computefhe::ALUStandard.

◆ CPSubC()

virtual FixedPoint computefhe::BaseALU::CPSubC	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Ciphertext-Plaintext subtraction with carry.

Implemented in computefhe::ALUStandard.

◆ CPSubCNC()

virtual FixedPoint computefhe::BaseALU::CPSubCNC	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Ciphertext-Plaintext subtraction with carry, no update.

Implemented in computefhe::ALUStandard.

◆ CPSubNC()

virtual FixedPoint computefhe::BaseALU::CPSubNC	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Ciphertext-Plaintext subtraction without updating internal carry.

Implemented in computefhe::ALUStandard.

◆ DivU()

virtual void computefhe::BaseALU::DivU	(	const FixedPoint &	a,
		const FixedPoint &	b,
		FixedPoint &	q,
		FixedPoint &	r
	)

pure virtual

Unsigned division, calculating quotient (q) and remainder (r).

Implemented in computefhe::ALUStandard.

◆ FullAdder()

virtual void computefhe::BaseALU::FullAdder	(	const BinaryDigit &	a,
		const BinaryDigit &	b,
		const BinaryDigit &	c,
		BinaryDigit &	sum,
		BinaryDigit &	carry_out
	)

pure virtual

1-bit full adder with explicit carry-in.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ FullMul()

virtual FixedPoint computefhe::BaseALU::FullMul	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Performs full multiplication resulting in potentially larger bit-width.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Gate_DigitSum()

virtual BinaryDigit computefhe::BaseALU::Gate_DigitSum	(	const BinaryDigit &	e1,
		const BinaryDigit &	e0,
		const BinaryDigit &	s0
	)

pure virtual

Performs bitwise digit summation logic.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Gate_MAJ()

virtual BinaryDigit computefhe::BaseALU::Gate_MAJ	(	const BinaryDigit &	a,
		const BinaryDigit &	b,
		const BinaryDigit &	c
	)

pure virtual

Majority gate: returns true if at least two inputs are true.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Gate_MulAdd()

virtual BinaryDigit computefhe::BaseALU::Gate_MulAdd	(	const BinaryDigit &	m,
		const BinaryDigit &	a,
		const BinaryDigit &	b,
		BinaryDigit *	carry_out = `nullptr`
	)

pure virtual

Multiplies two digits and adds a third, optionally returning carry out.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Gate_XOR3()

virtual BinaryDigit computefhe::BaseALU::Gate_XOR3	(	const BinaryDigit &	a,
		const BinaryDigit &	b,
		const BinaryDigit &	c
	)

pure virtual

3-input XOR gate.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ HalfAdder()

virtual void computefhe::BaseALU::HalfAdder	(	const BinaryDigit &	a,
		const BinaryDigit &	b,
		BinaryDigit &	sum,
		BinaryDigit &	carry_out
	)

pure virtual

1-bit half adder.

Implemented in computefhe::ALUStandard.

◆ HalfSubtractor()

virtual void computefhe::BaseALU::HalfSubtractor	(	const BinaryDigit &	a,
		const BinaryDigit &	b,
		BinaryDigit &	sum,
		BinaryDigit &	carry_out
	)

pure virtual

1-bit half subtractor.

Implemented in computefhe::ALUStandard.

◆ Mul()

virtual FixedPoint computefhe::BaseALU::Mul	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Standard multiplication (truncated to input width).

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Mux()

virtual FixedPoint computefhe::BaseALU::Mux	(	const BinaryDigit &	s,
		const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Multiplexer for FixedPoint values: returns 'a' if 's' is true, else 'b'.

Implemented in computefhe::ALUStandard.

◆ Neg()

virtual FixedPoint computefhe::BaseALU::Neg ( const FixedPoint & a )

pure virtual

Arithmetic negation: result = -a.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Not()

virtual FixedPoint computefhe::BaseALU::Not ( const FixedPoint & a )

pure virtual

Bitwise NOT.

Implemented in computefhe::ALUStandard.

◆ PAdd()

virtual FixedPoint computefhe::BaseALU::PAdd	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Plaintext addition: result = a + pb.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PAddC()

virtual FixedPoint computefhe::BaseALU::PAddC	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Plaintext addition with carry.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PAddCNC()

virtual FixedPoint computefhe::BaseALU::PAddCNC	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Plaintext addition with carry, but no update to internal state.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PAddNC()

virtual FixedPoint computefhe::BaseALU::PAddNC	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Plaintext addition without updating internal carry.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PBoothsMul()

virtual FixedPoint computefhe::BaseALU::PBoothsMul	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Multiplication using Booth's algorithm with a plaintext constant.

Implemented in computefhe::ALUStandard.

◆ PFullMul()

virtual FixedPoint computefhe::BaseALU::PFullMul	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Full multiplication by a plaintext constant.

Implemented in computefhe::ALUStandard.

◆ PFullMulFast()

virtual FixedPoint computefhe::BaseALU::PFullMulFast	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Optimized full multiplication by a plaintext constant.

Implemented in computefhe::ALUStandard.

◆ PMul()

virtual FixedPoint computefhe::BaseALU::PMul	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Standard multiplication by a plaintext constant.

Implemented in computefhe::ALUStandard.

◆ PMulFast()

virtual FixedPoint computefhe::BaseALU::PMulFast	(	const FixedPoint &	a,
		const FixedPoint &	pb
	)

pure virtual

Optimized standard multiplication by a plaintext constant.

Implemented in computefhe::ALUStandard.

◆ PSub()

virtual FixedPoint computefhe::BaseALU::PSub	(	const FixedPoint &	pa,
		const FixedPoint &	b
	)

pure virtual

Plaintext subtraction: result = pa - b.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PSubC()

virtual FixedPoint computefhe::BaseALU::PSubC	(	const FixedPoint &	pa,
		const FixedPoint &	b
	)

pure virtual

Plaintext subtraction with carry.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PSubCNC()

virtual FixedPoint computefhe::BaseALU::PSubCNC	(	const FixedPoint &	pa,
		const FixedPoint &	b
	)

pure virtual

Plaintext subtraction with carry, but no update to internal state.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ PSubNC()

virtual FixedPoint computefhe::BaseALU::PSubNC	(	const FixedPoint &	pa,
		const FixedPoint &	b
	)

pure virtual

Plaintext subtraction without updating internal carry.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ ShiftLeft()

virtual FixedPoint computefhe::BaseALU::ShiftLeft	(	const FixedPoint &	a,
		size_t	shift
	)

pure virtual

Logical shift left.

Implemented in computefhe::ALUStandard.

◆ ShiftRight()

virtual FixedPoint computefhe::BaseALU::ShiftRight	(	const FixedPoint &	a,
		size_t	shift,
		bool	is_arithmetic = `false`
	)

pure virtual

Shift right (supports both logical and arithmetic/signed shifts).

Implemented in computefhe::ALUStandard.

◆ Sub()

virtual FixedPoint computefhe::BaseALU::Sub	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Subtraction: result = a - b.

Implemented in computefhe::ALUStandard.

◆ SubC()

virtual FixedPoint computefhe::BaseALU::SubC	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Subtraction with Borrow (!Carry): result = a - b - !carry.

Implemented in computefhe::ALUStandard.

◆ SubCNC()

virtual FixedPoint computefhe::BaseALU::SubCNC	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Subtraction with Carry, but without updating internal carry.

Implemented in computefhe::ALUStandard.

◆ SubNC()

virtual FixedPoint computefhe::BaseALU::SubNC	(	const FixedPoint &	a,
		const FixedPoint &	b
	)

pure virtual

Subtraction without updating internal carry.

Implemented in computefhe::ALUStandard.

◆ Swap_if() [1/2]

virtual void computefhe::BaseALU::Swap_if	(	const BinaryDigit &	cond,
		BinaryDigit &	a,
		BinaryDigit &	b
	)

pure virtual

Conditional swap of two bits if 'cond' is true.

Implemented in computefhe::ALUOptimized, and computefhe::ALUStandard.

◆ Swap_if() [2/2]

virtual void computefhe::BaseALU::Swap_if	(	const BinaryDigit &	cond,
		FixedPoint &	a,
		FixedPoint &	b
	)

pure virtual

Conditional swap of two FixedPoint values if 'cond' is true.

Implemented in computefhe::ALUStandard.

◆ ToggleMSB()

virtual FixedPoint computefhe::BaseALU::ToggleMSB ( const FixedPoint & a )

pure virtual

Toggles the Most Significant Bit (useful for sign manipulation).

Implemented in computefhe::ALUStandard.

The documentation for this class was generated from the following file:

src/include/computefhe/BaseALU.h

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BaseALU()

Member Function Documentation

◆ Add()

◆ AddC()

◆ AddCNC()

◆ AddNC()

◆ CmpEq()

◆ CmpGT()

◆ CmpGT_U()

◆ CmpGTEq()

◆ CmpGTEq_U()

◆ CmpLT()

◆ CmpLT_U()

◆ CmpLTEq()

◆ CmpLTEq_U()

◆ CmpNotEq()

◆ CPSub()

◆ CPSubC()

◆ CPSubCNC()

◆ CPSubNC()

◆ DivU()

◆ FullAdder()

◆ FullMul()

◆ Gate_DigitSum()

◆ Gate_MAJ()

◆ Gate_MulAdd()

◆ Gate_XOR3()

◆ HalfAdder()

◆ HalfSubtractor()

◆ Mul()

◆ Mux()

◆ Neg()

◆ Not()

◆ PAdd()

◆ PAddC()

◆ PAddCNC()

◆ PAddNC()

◆ PBoothsMul()

◆ PFullMul()

◆ PFullMulFast()

◆ PMul()

◆ PMulFast()

◆ PSub()

◆ PSubC()

◆ PSubCNC()

◆ PSubNC()

◆ ShiftLeft()

◆ ShiftRight()

◆ Sub()

◆ SubC()

◆ SubCNC()

◆ SubNC()

◆ Swap_if() [1/2]

◆ Swap_if() [2/2]

◆ ToggleMSB()
