computefhe::ALUOptimized Class Reference

Optimized ALU implementation using specialized multi-input FHE gates. More...

#include <ALUOptimized.h>

Inheritance diagram for computefhe::ALUOptimized:

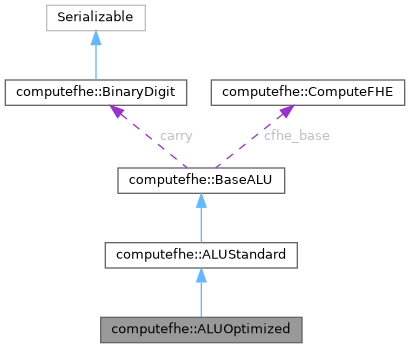

Collaboration diagram for computefhe::ALUOptimized:

Public Member Functions
	ALUOptimized (ComputeFHE *cfhe)
virtual BinaryDigit	FHE_MAJ (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c)
virtual BinaryDigit	FHE_XOR3 (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c)
virtual BinaryDigit	FHE_MulAdd (const BinaryDigit &m, const BinaryDigit &a, const BinaryDigit &b, BinaryDigit *carry_out=nullptr)
virtual BinaryDigit	FHE_MUX (const BinaryDigit &s, const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_DigitSum (const BinaryDigit &e1, const BinaryDigit &e0, const BinaryDigit &s0)
virtual BinaryDigit	Gate_MAJ (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c)
	Majority gate: returns true if at least two inputs are true.
virtual BinaryDigit	Gate_XOR3 (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c)
	3-input XOR gate.
virtual BinaryDigit	Gate_MulAdd (const BinaryDigit &m, const BinaryDigit &a, const BinaryDigit &b, BinaryDigit *carry_out=nullptr)
	Multiplies two digits and adds a third, optionally returning carry out.
virtual BinaryDigit	Gate_DigitSum (const BinaryDigit &e1, const BinaryDigit &e0, const BinaryDigit &s0)
	Performs bitwise digit summation logic.
virtual void	FullAdder (const BinaryDigit &a, const BinaryDigit &b, const BinaryDigit &c, BinaryDigit &sum, BinaryDigit &carry_out)
	1-bit full adder with explicit carry-in.
virtual BinaryDigit	CmpLTEq_U (const FixedPoint &a, const FixedPoint &b)
	Unsigned Less-Than or Equal.
virtual BinaryDigit	CmpGT_U (const FixedPoint &a, const FixedPoint &b)
	Unsigned Greater-Than.
virtual FixedPoint	FullMul (const FixedPoint &a, const FixedPoint &b)
	Performs full multiplication resulting in potentially larger bit-width.
virtual FixedPoint	Mul (const FixedPoint &a, const FixedPoint &b)
	Standard multiplication (truncated to input width).
virtual void	Swap_if (const BinaryDigit &cond, BinaryDigit &a, BinaryDigit &b)
	Conditional swap of two bits if 'cond' is true.
virtual FixedPoint	PAdd (const FixedPoint &a, const FixedPoint &pb)
	Plaintext addition: result = a + pb.
virtual FixedPoint	PAddC (const FixedPoint &a, const FixedPoint &pb)
	Plaintext addition with carry.
virtual FixedPoint	PAddNC (const FixedPoint &a, const FixedPoint &pb)
	Plaintext addition without updating internal carry.
virtual FixedPoint	PAddCNC (const FixedPoint &a, const FixedPoint &pb)
	Plaintext addition with carry, but no update to internal state.
virtual FixedPoint	PSub (const FixedPoint &pa, const FixedPoint &b)
	Plaintext subtraction: result = pa - b.
virtual FixedPoint	PSubC (const FixedPoint &pa, const FixedPoint &b)
	Plaintext subtraction with carry.
virtual FixedPoint	PSubNC (const FixedPoint &pa, const FixedPoint &b)
	Plaintext subtraction without updating internal carry.
virtual FixedPoint	PSubCNC (const FixedPoint &pa, const FixedPoint &b)
	Plaintext subtraction with carry, but no update to internal state.
virtual FixedPoint	Neg (const FixedPoint &a)
	Arithmetic negation: result = -a.
virtual uint	Get_CtCtAdd_Cost (size_t n_bits)
virtual uint	Get_CtCtAddNC_Cost (size_t n_bits)
virtual uint	Get_CtCtSubC_Cost (size_t n_bits)
virtual uint	Get_CtPtAddC_Cost (size_t n_bits)
virtual uint	Get_PtCtSub_Cost (size_t n_bits)
virtual uint	Get_CtPtSubCNC_Cost (size_t n_bits)
virtual uint	Get_CtNeg_Cost (size_t n_bits)
Public Member Functions inherited from computefhe::ALUStandard
	ALUStandard (ComputeFHE *cfhe)
virtual FixedPoint	Mux (const BinaryDigit &s, const FixedPoint &a, const FixedPoint &b)
	Multiplexer for FixedPoint values: returns 'a' if 's' is true, else 'b'.
virtual FixedPoint	ToggleMSB (const FixedPoint &a)
	Toggles the Most Significant Bit (useful for sign manipulation).
virtual FixedPoint	ShiftLeft (const FixedPoint &a, size_t shift)
	Logical shift left.
virtual FixedPoint	ShiftRight (const FixedPoint &a, size_t shift, bool is_arithmetic=false)
	Shift right (supports both logical and arithmetic/signed shifts).
virtual void	Swap_if (const BinaryDigit &cond, FixedPoint &a, FixedPoint &b)
	Conditional swap of two FixedPoint values if 'cond' is true.
virtual void	HalfAdder (const BinaryDigit &a, const BinaryDigit &b, BinaryDigit &sum, BinaryDigit &carry_out)
	1-bit half adder.
virtual void	HalfSubtractor (const BinaryDigit &a, const BinaryDigit &b, BinaryDigit &sum, BinaryDigit &carry_out)
	1-bit half subtractor.
virtual FixedPoint	Add (const FixedPoint &a, const FixedPoint &b)
	Addition: result = a + b.
virtual FixedPoint	AddC (const FixedPoint &a, const FixedPoint &b)
	Addition with Carry: result = a + b + carry.
virtual FixedPoint	AddNC (const FixedPoint &a, const FixedPoint &b)
	Addition without updating internal carry.
virtual FixedPoint	AddCNC (const FixedPoint &a, const FixedPoint &b)
	Addition with Carry, but without updating internal carry.
virtual FixedPoint	Sub (const FixedPoint &a, const FixedPoint &b)
	Subtraction: result = a - b.
virtual FixedPoint	SubC (const FixedPoint &a, const FixedPoint &b)
	Subtraction with Borrow (!Carry): result = a - b - !carry.
virtual FixedPoint	SubNC (const FixedPoint &a, const FixedPoint &b)
	Subtraction without updating internal carry.
virtual FixedPoint	SubCNC (const FixedPoint &a, const FixedPoint &b)
	Subtraction with Carry, but without updating internal carry.
virtual FixedPoint	Not (const FixedPoint &a)
	Bitwise NOT.
virtual BinaryDigit	CmpNotEq (const FixedPoint &a, const FixedPoint &b)
	Not-Equal.
virtual BinaryDigit	CmpEq (const FixedPoint &a, const FixedPoint &b)
	Equal.
virtual BinaryDigit	CmpGTEq_U (const FixedPoint &a, const FixedPoint &b)
	Unsigned Greater-Than or Equal.
virtual BinaryDigit	CmpLT_U (const FixedPoint &a, const FixedPoint &b)
	Unsigned Less-Than.
virtual BinaryDigit	CmpLTEq (const FixedPoint &a, const FixedPoint &b)
	Signed Less-Than or Equal.
virtual BinaryDigit	CmpGT (const FixedPoint &a, const FixedPoint &b)
	Signed Greater-Than.
virtual BinaryDigit	CmpGTEq (const FixedPoint &a, const FixedPoint &b)
	Signed Greater-Than or Equal.
virtual BinaryDigit	CmpLT (const FixedPoint &a, const FixedPoint &b)
	Signed Less-Than.
virtual void	DivU (const FixedPoint &a, const FixedPoint &b, FixedPoint &q, FixedPoint &r)
	Unsigned division, calculating quotient (q) and remainder (r).
virtual FixedPoint	CPSub (const FixedPoint &a, const FixedPoint &pb)
	Ciphertext-Plaintext subtraction: result = a - pb.
virtual FixedPoint	CPSubC (const FixedPoint &a, const FixedPoint &pb)
	Ciphertext-Plaintext subtraction with carry.
virtual FixedPoint	CPSubNC (const FixedPoint &a, const FixedPoint &pb)
	Ciphertext-Plaintext subtraction without updating internal carry.
virtual FixedPoint	CPSubCNC (const FixedPoint &a, const FixedPoint &pb)
	Ciphertext-Plaintext subtraction with carry, no update.
virtual FixedPoint	PFullMul (const FixedPoint &a, const FixedPoint &pb)
	Full multiplication by a plaintext constant.
virtual FixedPoint	PFullMulFast (const FixedPoint &a, const FixedPoint &pb)
	Optimized full multiplication by a plaintext constant.
virtual FixedPoint	PBoothsMul (const FixedPoint &a, const FixedPoint &pb)
	Multiplication using Booth's algorithm with a plaintext constant.
virtual FixedPoint	PMul (const FixedPoint &a, const FixedPoint &pb)
	Standard multiplication by a plaintext constant.
virtual FixedPoint	PMulFast (const FixedPoint &a, const FixedPoint &pb)
	Optimized standard multiplication by a plaintext constant.
virtual uint	Get_CtCtSubNC_Cost (size_t n_bits)
virtual uint	Get_PtFullMul_Cost (const FixedPoint &pt, size_t ct_n_bits, size_t &out_n_bits)
virtual uint	Get_Pt2sCompFullMul_Cost (const FixedPoint &pt, size_t ct_n_bits)
virtual uint	Get_PtMul_Cost (const FixedPoint &pt)
virtual uint	Get_Pt2sCompMul_Cost (const FixedPoint &pt)
virtual uint	Get_BoothsMul_Cost (const FixedPoint &pt, size_t ct_n_bits)
Public Member Functions inherited from computefhe::BaseALU
	BaseALU (ComputeFHE *cfhe)
	Construct a new BaseALU object.
virtual	~BaseALU ()
	Destroy the BaseALU object.
virtual BinaryDigit	GetCarry ()
	Returns the current internal carry state.
virtual void	SetCarry (BinaryDigit value)
	Manually sets the internal carry to a specific value.
virtual void	SetCarry ()
	Sets the internal carry to an encrypted 'True' value.
virtual void	ResetCarry ()
	Resets the internal carry to an encrypted 'False' value.
virtual BinaryDigit	FHE_False ()
virtual BinaryDigit	FHE_True ()
virtual BinaryDigit	FHE_AND (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_NAND (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_OR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_NOR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_XOR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_XNOR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	FHE_NOT (const BinaryDigit &a)
virtual BinaryDigit	Constant0 ()
	Returns encrypted constant 0 (false).
virtual BinaryDigit	Constant1 ()
	Returns encrypted constant 1 (true).
virtual BinaryDigit	Gate_AND (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	Gate_NAND (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	Gate_OR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	Gate_NOR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	Gate_XOR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	Gate_XNOR (const BinaryDigit &a, const BinaryDigit &b)
virtual BinaryDigit	Gate_NOT (const BinaryDigit &a)
virtual BinaryDigit	Gate_MUX (const BinaryDigit &s, const BinaryDigit &a, const BinaryDigit &b)

Additional Inherited Members
Protected Attributes inherited from computefhe::BaseALU
BinaryDigit	carry
ComputeFHE *	cfhe_base

Detailed Description

Optimized ALU implementation using specialized multi-input FHE gates.

This class extends ALUStandard to provide faster arithmetic operations by utilizing 3-input kernels like MAJ and XOR3, and reduces bootstrapping overhead.

Member Function Documentation

CmpGT_U()

virtual BinaryDigit computefhe::ALUOptimized::CmpGT_U ( const FixedPoint &  a, const FixedPoint &  b  )

virtual

Unsigned Greater-Than.

Reimplemented from computefhe::ALUStandard.

CmpLTEq_U()

virtual BinaryDigit computefhe::ALUOptimized::CmpLTEq_U ( const FixedPoint &  a, const FixedPoint &  b  )

virtual

Unsigned Less-Than or Equal.

Reimplemented from computefhe::ALUStandard.

FHE_MUX()

virtual BinaryDigit computefhe::ALUOptimized::FHE_MUX ( const BinaryDigit &  s, const BinaryDigit &  a, const BinaryDigit &  b  )

virtual

Reimplemented from computefhe::BaseALU.

FullAdder()

virtual void computefhe::ALUOptimized::FullAdder ( const BinaryDigit &  a, const BinaryDigit &  b, const BinaryDigit &  c, BinaryDigit &  sum, BinaryDigit &  carry_out  )

virtual

1-bit full adder with explicit carry-in.

Reimplemented from computefhe::ALUStandard.

FullMul()

virtual FixedPoint computefhe::ALUOptimized::FullMul ( const FixedPoint &  a, const FixedPoint &  b  )

virtual

Performs full multiplication resulting in potentially larger bit-width.

Reimplemented from computefhe::ALUStandard.

Gate_DigitSum()

virtual BinaryDigit computefhe::ALUOptimized::Gate_DigitSum ( const BinaryDigit &  e1, const BinaryDigit &  e0, const BinaryDigit &  s0  )

virtual

Performs bitwise digit summation logic.

Reimplemented from computefhe::ALUStandard.

Gate_MAJ()

virtual BinaryDigit computefhe::ALUOptimized::Gate_MAJ ( const BinaryDigit &  a, const BinaryDigit &  b, const BinaryDigit &  c  )

virtual

Majority gate: returns true if at least two inputs are true.

Reimplemented from computefhe::ALUStandard.

Gate_MulAdd()

virtual BinaryDigit computefhe::ALUOptimized::Gate_MulAdd ( const BinaryDigit &  m, const BinaryDigit &  a, const BinaryDigit &  b, BinaryDigit *  carry_out = nullptr  )

virtual

Multiplies two digits and adds a third, optionally returning carry out.

Reimplemented from computefhe::ALUStandard.

Gate_XOR3()

virtual BinaryDigit computefhe::ALUOptimized::Gate_XOR3 ( const BinaryDigit &  a, const BinaryDigit &  b, const BinaryDigit &  c  )

virtual

3-input XOR gate.

Reimplemented from computefhe::ALUStandard.

Get_CtCtAdd_Cost()

virtual uint computefhe::ALUOptimized::Get_CtCtAdd_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Get_CtCtAddNC_Cost()

virtual uint computefhe::ALUOptimized::Get_CtCtAddNC_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Get_CtCtSubC_Cost()

virtual uint computefhe::ALUOptimized::Get_CtCtSubC_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Get_CtNeg_Cost()

virtual uint computefhe::ALUOptimized::Get_CtNeg_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Get_CtPtAddC_Cost()

virtual uint computefhe::ALUOptimized::Get_CtPtAddC_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Get_CtPtSubCNC_Cost()

virtual uint computefhe::ALUOptimized::Get_CtPtSubCNC_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Get_PtCtSub_Cost()

virtual uint computefhe::ALUOptimized::Get_PtCtSub_Cost ( size_t  n_bits )

virtual

Reimplemented from computefhe::ALUStandard.

Mul()

virtual FixedPoint computefhe::ALUOptimized::Mul ( const FixedPoint &  a, const FixedPoint &  b  )

virtual

Standard multiplication (truncated to input width).

Reimplemented from computefhe::ALUStandard.

Neg()

virtual FixedPoint computefhe::ALUOptimized::Neg ( const FixedPoint &  a )

virtual

Arithmetic negation: result = -a.

Reimplemented from computefhe::ALUStandard.

PAdd()

virtual FixedPoint computefhe::ALUOptimized::PAdd ( const FixedPoint &  a, const FixedPoint &  pb  )

virtual

Plaintext addition: result = a + pb.

Reimplemented from computefhe::ALUStandard.

PAddC()

virtual FixedPoint computefhe::ALUOptimized::PAddC ( const FixedPoint &  a, const FixedPoint &  pb  )

virtual

Plaintext addition with carry.

Reimplemented from computefhe::ALUStandard.

PAddCNC()

virtual FixedPoint computefhe::ALUOptimized::PAddCNC ( const FixedPoint &  a, const FixedPoint &  pb  )

virtual

Plaintext addition with carry, but no update to internal state.

Reimplemented from computefhe::ALUStandard.

PAddNC()

virtual FixedPoint computefhe::ALUOptimized::PAddNC ( const FixedPoint &  a, const FixedPoint &  pb  )

virtual

Plaintext addition without updating internal carry.

Reimplemented from computefhe::ALUStandard.

PSub()

virtual FixedPoint computefhe::ALUOptimized::PSub ( const FixedPoint &  pa, const FixedPoint &  b  )

virtual

Plaintext subtraction: result = pa - b.

Reimplemented from computefhe::ALUStandard.

PSubC()

virtual FixedPoint computefhe::ALUOptimized::PSubC ( const FixedPoint &  pa, const FixedPoint &  b  )

virtual

Plaintext subtraction with carry.

Reimplemented from computefhe::ALUStandard.

PSubCNC()

virtual FixedPoint computefhe::ALUOptimized::PSubCNC ( const FixedPoint &  pa, const FixedPoint &  b  )

virtual

Plaintext subtraction with carry, but no update to internal state.

Reimplemented from computefhe::ALUStandard.

PSubNC()

virtual FixedPoint computefhe::ALUOptimized::PSubNC ( const FixedPoint &  pa, const FixedPoint &  b  )

virtual

Plaintext subtraction without updating internal carry.

Reimplemented from computefhe::ALUStandard.

Swap_if()

virtual void computefhe::ALUOptimized::Swap_if ( const BinaryDigit &  cond, BinaryDigit &  a, BinaryDigit &  b  )

virtual

Conditional swap of two bits if 'cond' is true.

Reimplemented from computefhe::ALUStandard.

---

The documentation for this class was generated from the following file:

• src/include/computefhe/ALUOptimized.h
